AP2 Mandates Extension¶

Version: 2026-01-11

Overview¶

The AP2 Mandates extension enables the secure exchange of user intents and authorizations using Verifiable Digital Credentials. It extends the standard Shopping Service Checkout capability to support the AP2 Protocol.

When this capability is negotiated and active, it transforms a standard checkout session into a cryptographically bound agreement:

Businesses MUST embed a cryptographic signature in checkout responses, proving the terms (price, line items) are authentic.
Platforms MUST provide cryptographically signed proofs (Mandates) during the complete operation, proving the user explicitly authorized the specific checkout state and funds transfer.

Security Binding: Once this extension is negotiated in the capability intersection, the session is Security Locked. Neither party may revert to a standard (unprotected) checkout flow.

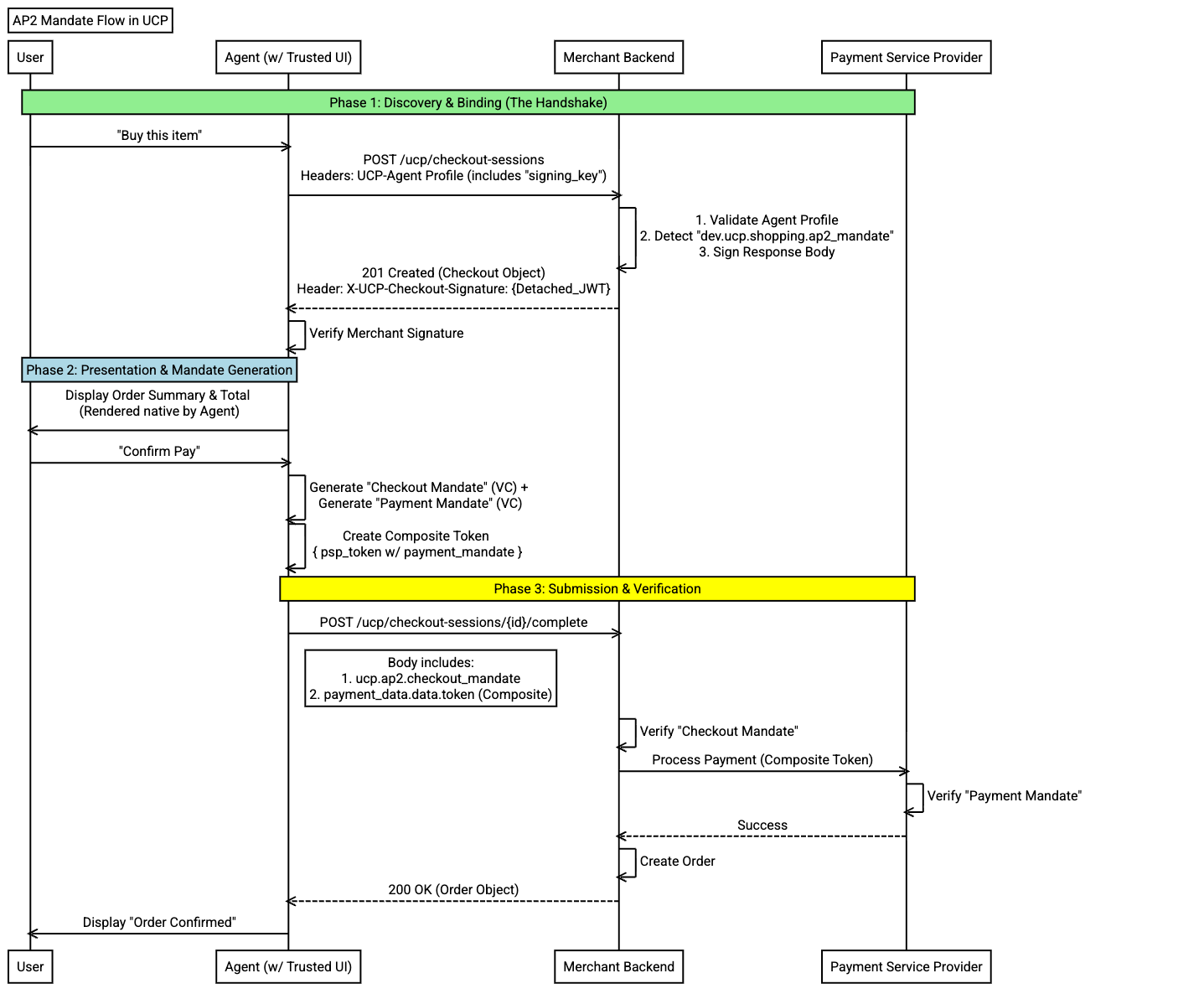

High-level AP2 flow sequence diagram

Design¶

All AP2-specific fields are nested under an ap2 object in both requests and responses. This design provides:

Schema modularity — Base checkout schema stays clean; AP2 adds one field containing all its data.
Consistent canonicalization — One rule: exclude ap2 from the business's signature computation. Future AP2 fields are automatically handled.
Extension coexistence — Multiple security extensions can coexist without namespace collisions.
Capability signal — Presence of ap2 object clearly indicates AP2 is active.

Discovery & Negotiation¶

This extension follows the standard UCP negotiation protocol. It is activated only when it appears in the Capability Intersection of both the business and the platform.

Business Profile Advertisement¶

Businesses declare support by adding dev.ucp.shopping.ap2_mandate to their capabilities list in /.well-known/ucp.

Business Profile Example:

href="#__codelineno-0-1">{ "capabilities": [ { "name": "dev.ucp.shopping.checkout", "version": "2026-01-11", "spec": "https://ucp.dev/specification/checkout", "schema": "https://ucp.dev/schemas/shopping/checkout.json" }, { "name": "dev.ucp.shopping.ap2_mandate", "version": "2026-01-11", "spec": "https://ucp.dev/specification/ap2-mandates", "schema": "https://ucp.dev/schemas/shopping/ap2_mandate.json", "extends": "dev.ucp.shopping.checkout", "config": { "vp_formats_supported": { "dc+sd-jwt": { } } } } ] }

Platform Profile Advertisement¶

Platforms declare support in their profile. If the platform is operating under the trusted platform provider model, the platform MUST provide at least one key in the top-level signing_keys array in their profile.

Activation and Session Locking¶

The platform advertises its profile URI (transport-specific mechanism).
The business fetches the profile and computes the intersection.
If dev.ucp.shopping.ap2_mandate is present in the intersection:
- The business MUST include ap2.merchant_authorization in all checkout responses.
- The business MUST NOT accept a complete_checkout request that lacks ap2.checkout_mandate.
- The platform MUST verify the business's signature before presenting the checkout to the user.

Signing Key Requirements¶

To utilize this extension, a public signing key MUST be available for the business to verify the mandate's signature.

Platform Provider Flow: Key provided in the platform profile's signing_keys.
User Credential Flow: Key bound to the digital payment credential.

If a public key cannot be resolved, or if the signature is invalid, the business MUST return an error.

Cryptographic Requirements¶

Signature Algorithm¶

All signatures MUST use one of the following algorithms:

Algorithm	Description
`ES256`	ECDSA using P-256 curve and SHA-256 (RECOMMENDED)
`ES384`	ECDSA using P-384 curve and SHA-384
`ES512`	ECDSA using P-521 curve and SHA-512

Business Authorization¶

Businesses MUST embed their signature in the checkout response body under ap2.merchant_authorization using JWS Detached Content format (RFC 7515 Appendix F).

Checkout Response with Embedded Signature:

{
  "id": "chk_abc123",
  "status": "ready_for_complete",
  "currency": "USD",
  "line_items": [...],
  "totals": [...],
  "ap2": {
    "merchant_authorization": "eyJhbGciOiJFUzI1NiIsImtpZCI6Im1lcmNoYW50XzIwMjUifQ..<signature>"
  }
}

The merchant_authorization value is a JWS with detached payload in the format <header>..<signature>. The double dot (..) indicates the payload is transmitted separately (as the checkout body itself).

JWS Header Claims:

Claim	Type	Required	Description
`alg`	string	Yes	Signature algorithm (`ES256`, `ES384`, `ES512`)
`kid`	string	Yes	Key ID referencing the business's `signing_keys`

Signature Computation:

The signature MUST cover both the JWS header and the checkout payload. This prevents algorithm substitution attacks where an attacker modifies the alg claim without invalidating the signature.

sign_checkout(checkout, private_key, kid, alg="ES256"):
    // Extract payload (checkout minus ap2)
    payload = checkout without "ap2" field

    // Canonicalize using JCS (RFC 8785)
    canonical_bytes = jcs_canonicalize(payload)

    // Create protected header
    header = {"alg": alg, "kid": kid}
    encoded_header = base64url_encode(json_encode(header))

    // Sign header + payload per JWS
    signing_input = encoded_header + "." + base64url_encode(canonical_bytes)
    signature = sign(signing_input, private_key, alg)

    // Return detached JWS (header..signature, no payload)
    checkout.ap2.merchant_authorization = encoded_header + ".." + base64url_encode(signature)
    return checkout

Mandate Structure¶

Mandates are SD-JWT credentials with Key Binding (+kb). The platform MUST produce two distinct mandate artifacts:

Mandate	UCP Placement	Purpose
checkout_mandate	`ap2.checkout_mandate`	Proof bound to checkout terms, protects business
payment_mandate	`payment_data.token`	Proof bound to payment authorization, protects funds

The checkout mandate MUST contain the full checkout response including the ap2.merchant_authorization field. This creates a nested cryptographic binding where the platform's signature covers the business's signature.

Specification Boundary: This extension defines where mandates are placed in UCP requests and responses. The mandate credential structure (claims, selective disclosure, key binding) is defined by the AP2 Protocol Specification.

Canonicalization¶

For signature computation over JSON payloads, implementations MUST use JSON Canonicalization Scheme (JCS) as defined in RFC 8785.

JCS produces a deterministic, byte-for-byte identical representation of JSON data, ensuring signatures can be verified regardless of whitespace, key ordering, or Unicode normalization differences.

Canonicalization Rule: When computing the business's signature, exclude the ap2 field entirely. This ensures future AP2 fields are automatically handled.

The Mandate Flow¶

Once the dev.ucp.shopping.ap2_mandate capability is negotiated, the session is locked into the following flow. Both parties MUST follow these steps to ensure cryptographic integrity; any attempt to bypass these steps or submit a completion request without mandates MUST result in a session failure.

Step 1: Checkout Creation & Signing¶

The platform initiates the session. The business returns the Checkout object with ap2.merchant_authorization embedded in the response body.

Name	Type	Required	Description
ucp	UCP Response Checkout	Yes
id	string	Yes	Unique identifier of the checkout session.
line_items	Array[Line Item Response]	Yes	List of line items being checked out.
buyer	Buyer	No	Representation of the buyer.
status	string	Yes	Checkout state indicating the current phase and required action. See Checkout Status lifecycle documentation for state transition details. Enum: `incomplete`, `requires_escalation`, `ready_for_complete`, `complete_in_progress`, `completed`, `canceled`
currency	string	Yes	ISO 4217 currency code.
totals	Array[Total Response]	Yes	Different cart totals.
messages	Array[Message]	No	List of messages with error and info about the checkout session state.
links	Array[Link]	Yes	Links to be displayed by the platform (Privacy Policy, TOS). Mandatory for legal compliance.
expires_at	string	No	RFC 3339 expiry timestamp. Default TTL is 6 hours from creation if not sent.
continue_url	string	No	URL for checkout handoff and session recovery. MUST be provided when status is requires_escalation. See specification for format and availability requirements.
payment	Payment Response	Yes
order	Order Confirmation	No	Details about an order created for this checkout session.
ap2	Ap2 Checkout Response	No	AP2 extension data including merchant authorization.

Example Response:

{
  "id": "chk_abc123",
  "status": "ready_for_complete",
  "currency": "USD",
  "line_items": [
    {
      "id": "li_1",
      "item": {"id": "item_123", "title": "Widget", "price": 2500},
      "quantity": 2,
      "totals": [
        {"type": "subtotal", "amount": 5000},
        {"type": "total", "amount": 5000}
      ]
    }
  ],
  "totals": [
    {"type": "subtotal", "amount": 5000},
    {"type": "tax", "amount": 400},
    {"type": "total", "amount": 5400}
  ],
  "ap2": {
    "merchant_authorization": "eyJhbGciOiJFUzI1NiIsImtpZCI6Im1lcmNoYW50XzIwMjUifQ..<signature>"
  }
}

The platform MUST verify the signature:

verify_merchant_authorization(checkout, merchant_profile):
    // Parse detached JWS (header..signature)
    jws = checkout.ap2.merchant_authorization
    [encoded_header, empty, encoded_signature] = jws.split(".")

    // Decode and validate header
    header = json_decode(base64url_decode(encoded_header))
    assert header.alg in ["ES256", "ES384", "ES512"]

    // Reconstruct signed payload (checkout minus ap2)
    payload = checkout without "ap2" field
    canonical_bytes = jcs_canonicalize(payload)

    // Reconstruct signing input (header + payload)
    signing_input = encoded_header + "." + base64url_encode(canonical_bytes)

    // Get business's public key and verify
    public_key = get_key_by_kid(merchant_profile.signing_keys, header.kid)
    return verify(encoded_signature, signing_input, public_key, header.alg)

When the user confirms the purchase, the platform MUST facilitate the generation of cryptographically verifiable mandates.

Option 1: Trusted Platform Provider¶

A trusted platform provider acts on the user's behalf to generate the mandate credentials. The platform provider MUST ensure that mandates are not created without explicit user consent from trusted, deterministic channels.

Upon user consent, the platform signs the mandates using their server-side key. The business trusts the platform's signature implies user consent.

Option 2: Digital Payment Credential¶

In this model the user has a VDC issued from a source trusted by the business (for example: a digital payment credential issued by a bank or network).

The platform requests a presentation via a protocol like OpenID4VP. The User's Wallet (or equivalent) processes the request and signs the mandates using the private key associated with their payment credential.

The business trusts the Credential Issuer (Bank) and verifies the user's Key Binding (+kb) signature.

Step 3: Submission (`complete_checkout`)¶

Once the mandates are generated, the platform submits them in the completion request:

Name	Type	Required	Description
ap2	Ap2 Complete Request	No	AP2 extension data including checkout mandate.

{
  "payment_data": {
      "id": "instr_1",
      "handler_id": "gpay",
      "type": "card",
      "description": "Visa •••• 1234",
      "billing_address": {
        "street_address": "123 Main St",
        "address_locality": "Anytown",
        "address_region": "CA",
        "address_country": "US",
        "postal_code": "12345"
      },
      "credential": {
        "type": "PAYMENT_GATEWAY",
        "token": "examplePaymentMethodToken"
      }
  },
  "ap2": {
     "checkout_mandate": "eyJhbGciOiJFUzI1NiIsInR5cCI6InZjK3NkLWp3dCJ9..." // The User-Signed SD-JWT+kb / platform provider signed SD-JWT / delegated SD-JWT-KB
  }
}

ap2.checkout_mandate: The SD-JWT+kb checkout mandate containing the full checkout (with ap2.merchant_authorization)
payment_data.token: Contains the payment mandate (composite token)

Verification & Processing¶

Business Verification¶

Upon receiving the complete request, the business MUST:

Enforce Negotiation: If AP2 was negotiated, reject the request with mandate_required error code if ap2.checkout_mandate is missing.

Mandate Verification (per AP2 spec):

Verify Mandate: Decode and verify the SD-JWT signature, key binding, and expiration per the AP2 Protocol Specification.
Extract Embedded Checkout: Extract the checkout object from the verified mandate claims.

UCP Verification:

Verify Business Authorization: Confirm ap2.merchant_authorization in the embedded checkout is the business's own valid signature:

jws = embedded_checkout.ap2.merchant_authorization
[encoded_header, _, encoded_signature] = jws.split(".")
header = json_decode(base64url_decode(encoded_header))

payload = embedded_checkout without "ap2" field
signing_input = encoded_header + "." + base64url_encode(jcs_canonicalize(payload))

my_key = get_key_by_kid(my_signing_keys, header.kid)
verify(encoded_signature, signing_input, my_key, header.alg)

Verify Terms Match: Confirm the embedded checkout terms match the current session state (id, totals, line items).

PSP Verification¶

The business passes the token (composite object) to their Payment Handler / PSP. The PSP verifies the payment_mandate per the AP2 Protocol Specification, including signature validation, expiration, and correlation with the checkout.

Schema¶

Business Authorization¶

JWS Detached Content signature (RFC 7515 Appendix F) over the checkout response body (excluding ap2 field). Format: <base64url-header>..<base64url-signature>. The header MUST contain 'alg' (ES256/ES384/ES512) and 'kid' claims. The signature covers both the header and JCS-canonicalized checkout payload.

Pattern: ^[A-Za-z0-9_-]+\.\.[A-Za-z0-9_-]+$

AP2 Checkout Response¶

The ap2 object included in CREATE / UPDATE checkout responses.

Name	Type	Required	Description
merchant_authorization	Merchant Authorization	Yes	Merchant's signature proving checkout terms are authentic.

AP2 Complete Request¶

The ap2 object included in COMPLETE checkout requests.

Name	Type	Required	Description
checkout_mandate	Checkout Mandate	Yes	SD-JWT+kb proving user authorized this checkout.

Checkout Mandate¶

SD-JWT+kb credential in ap2.checkout_mandate. Proving user authorization for the checkout. Contains the full checkout including ap2.merchant_authorization.

Pattern: ^[A-Za-z0-9_-]+\.[A-Za-z0-9_-]*\.[A-Za-z0-9_-]+(~[A-Za-z0-9_-]+)*$

Error Codes¶

Error codes specific to AP2 mandate verification.

Enum: mandate_required, agent_missing_key, mandate_invalid_signature, mandate_expired, mandate_scope_mismatch, merchant_authorization_invalid, merchant_authorization_missing

Error Code	Description
`mandate_required`	AP2 was negotiated, but the request lacks `ap2.checkout_mandate`.
`agent_missing_key`	Platform profile lacks a valid `signing_keys` entry.
`mandate_invalid_signature`	The mandate signature cannot be verified.
`mandate_expired`	The mandate `exp` timestamp has passed.
`mandate_scope_mismatch`	The mandate is bound to a different checkout.
`merchant_authorization_invalid`	The business authorization signature could not be verified.
`merchant_authorization_missing`	AP2 negotiated but response lacks `ap2.merchant_authorization`.
